| Place of Origin: | China |
| Brand Name: | AMEISON |
| Certification: | ISO 9001: 2008 |
| Model Number: | AMXF-1922-12 |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | EXW Price |
| Packaging Details: | PP bag /inner box/master carton or customized |
| Delivery Time: | 10-20 working days |
| Payment Terms: | TT,Paypal,Western Union |
| Supply Ability: | 50,000 Pieces per Month |
| Frequency Range（MHz）: | 1920-2170 | Bandwidth（MHz）: | 250 |
|---|---|---|---|
| Gain（dBi）: | 12 | Half-power Beam Width（°）: | H:360 V:6 |
| VSWR: | ≤1.5 | Polarization: | Vertical |
| Lightning Protection: | DC Ground | Input Connector Type: | N Female Or Requested |
| Mounting Way: | Pole-holding | ||
| Highlight: | omni antenna,antenna omni wifi,antenna omni directional |
||
3GHz Omni-directional antenna
Factory price
Mounting Kit Included for pole
Weatherproof & Corrosion Resistant

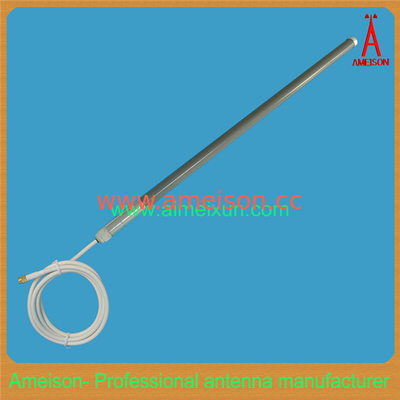

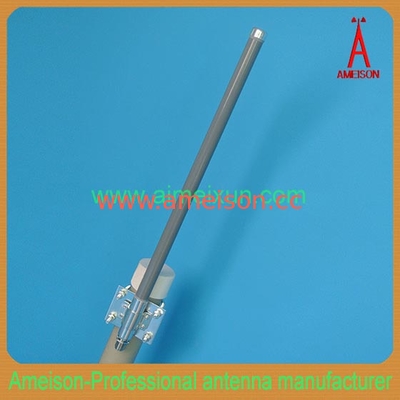

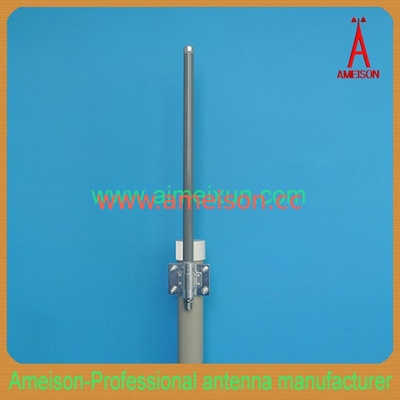

1920-2170MHz Omnidirectional Fiberglass Antenna
AMXF-1922-12
Feature:
Exquisite appearance
Good impact resistance,waterproofing and anticorrosion ability
Full day working
Optimized dimension
High gain,low standing wave,strong anti-interference ability
Application:
3G system;
Point-to-multipoint system.
|
AMXF-1922-12 Electrical Specifications |
|
|
Frequency range(MHz) |
1920-2170 |
|
Bandwidth(MHz) |
250 |
|
Gain(dBi) |
12 |
|
Half-power beam width(°) |
H:360 V:6 |
|
VSWR |
≤1.5 |
|
Input Impedance(Ω) |
50 |
|
Polarization |
Vertical |
|
Maximum input power(W) |
100 |
|
Lightning protection |
DC Ground |
|
Input connector type |
N Female or Requested |
|
Mechanical Specifications |
|
|
Dimensions (mm) |
Φ20*1260 |
|
Antenna weight(kg) |
0.59 |
|
Operating temperature(°c) |
-40～60 |
|
Rated Wind Velocity(m/s) |
60 |
|
Radome color |
Gray |
|

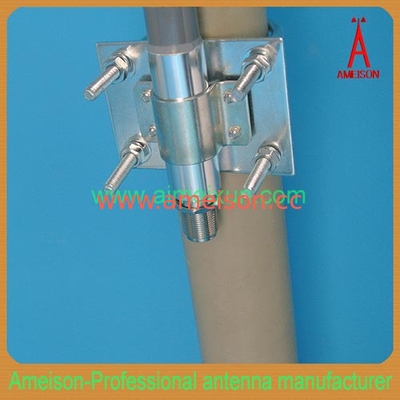

Mounting way |
Pole-holding |
|
Mounting hardware(mm) |
￠35-￠50 |
